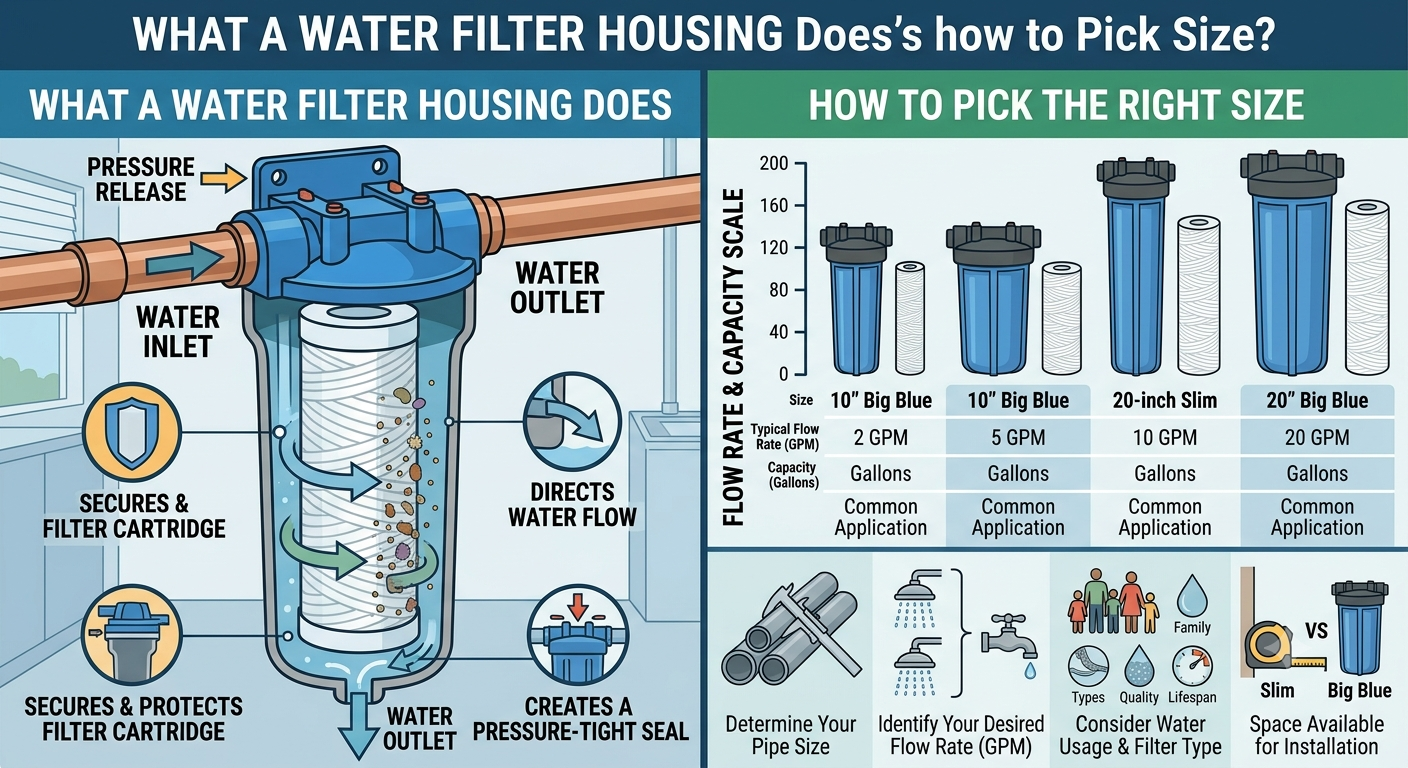

What a Water Filter Housing Does and How to Pick the Right Size
A water filter housing is the container that holds a replaceable filter cartridge. It may look simple, but it plays an important role in directing water through the filter, keeping the cartridge sealed, and supporting the overall filtration system. Choosing the right housing size is just as important as choosing the right filter cartridge.
What Does a Filter Housing Do?
The housing creates a sealed chamber where water enters, passes through the filter cartridge, and exits toward your plumbing or drinking water system. Without a properly fitted housing, water may bypass the filter or leak around the cartridge.
Some housings are used for whole house filtration, while others are used under the sink or as part of a multi-stage system. The design depends on the installation location, water flow requirements, and cartridge type.
Common Housing Sizes
Many residential filter housings are designed for 10-inch cartridges, but there are also larger formats such as 20-inch or big blue housings. A 10-inch housing is commonly used for under sink systems, pre-filters, and smaller whole house applications.
When checking size, look at both cartridge length and diameter. A cartridge may be described as 10 inches long, but it must also match the housing diameter, such as slim 2.5-inch styles or larger diameter cartridges.
Connection Size Matters
Filter housings also come with different inlet and outlet connection sizes. Common fittings may include 3/4-inch or 1-inch ports, depending on the system. Choosing the wrong connection size can make installation difficult or require extra adapters.
For whole house systems, connection size can affect flow. A housing that is too restrictive may reduce water pressure during showers, laundry, or appliance use.
Pressure Relief and Bracket Features
Some housings include a pressure relief button. This can help release pressure before opening the housing for filter replacement. Other models may include an integrated bracket cap, making wall mounting easier.
These features are convenient, but compatibility and safe installation should always come first.
Mistakes to Avoid
Do not choose a housing based only on cartridge length. Also check diameter, port size, material, pressure rating, and installation space. Avoid overtightening the housing sump, as this may damage the seal or make future replacement difficult.
Conclusion
A water filter housing holds the cartridge, controls water flow, and helps maintain a sealed filtration path. Before buying, check cartridge size, connection size, installation location, and maintenance features. A properly matched housing makes filter replacement easier and helps the system work as intended.
